Error code-JZHUpdated 3 years ago
Error code-JZH
Factory-JZH

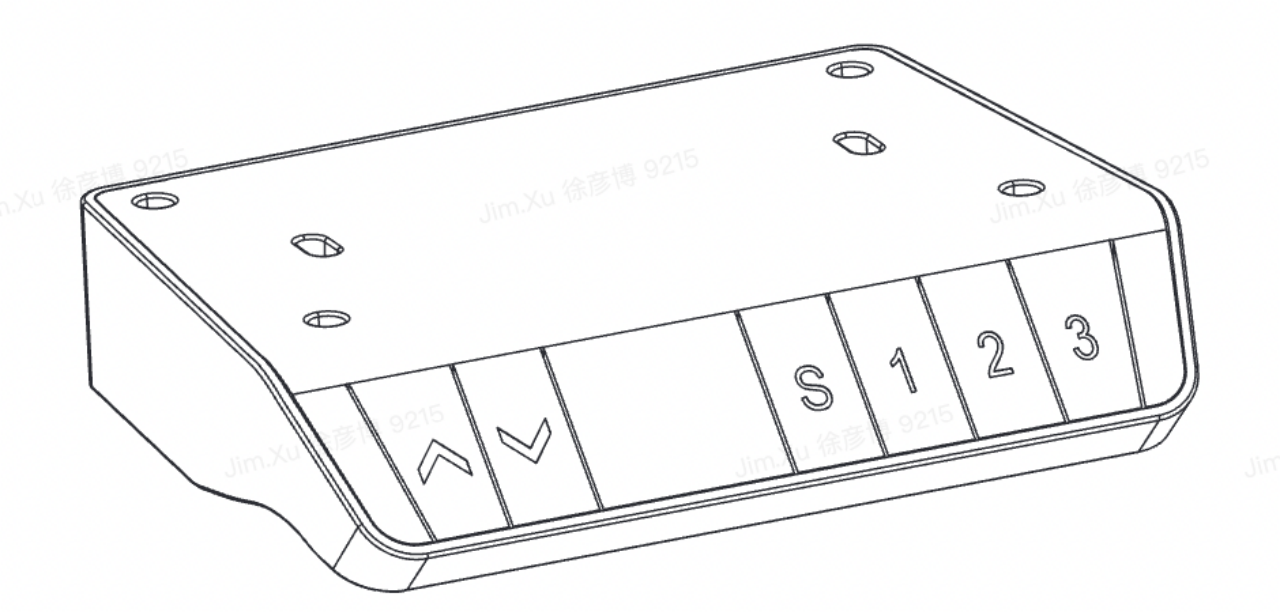

- · Controller mode:
Manual Reset
1、Long press the ⬇️ for 5 seconds and the screen will show “ RES ”.
2、Keep pressing the ⬇️ until the desk reaches its lowest height with a rebound.
3、Release the buttons to complete the reset.
- · Error code and troubleshooting:
*If solution 1 is not implemented, then solution 2 is implemented, and if solution 2 is still not implemented, then solution 3 is implemented.
Garbled code | E10 | E20 | E02 | HOT | E32 | E31 | 888 |
Displayed error | No physical photos | No physical photos | No physical photos | No physical photos | No physical photos | No physical photos | No physical photos |
Gorgias Templates | To be supplemented | To be supplemented | To be supplemented | To be supplemented | To be supplemented | To be supplemented | To be supplemented |
Code Meaning | Loss of motor signal, entering protection procedure | Start of overload protection status | Backward display when blocked | Too frequent operation, motor overheating protection | Overvoltage protection (hand controller voltage above 33V) | Low voltage protection (hand controller voltage less than 22V) | Problems with the hand control cable, resulting in a poor signal connection between the hand control and the controller. |
Solution 1 | 1. power off 2. Check the wiring and interfaces (interface on the motor section, interface on the hand control, interface on the extension cable) for loose/unplugged connections and reconnect 3. Manual reset |
2. Remove obstacles to ascent and descent and reapply power 3. Manual reset |
2. Remove obstacles to rise and fall, lift again to confirm | 1. Disconnect the power 2. Leave for more than 18min and reconnect | 1. Disconnect the power 2. Check if the hand control and adapter wiring and interface are loose/not plugged in place and reconnect | 1. Disconnect the power 2. Check if the hand control and adapter wiring and interface are loose/not plugged in place and reconnect | Replacement of hand controls |
Solution 2 | Replacement of controller | Replacement of controller | - | - | Replacement controller & adapters | Replacement controller & adapters | - |
Solution 3 | Replacement of motor column | Replacement of motor column | - | - | - | - | - |
