Error Code-AGEUpdated 3 years ago
Error Code-AGE
Factory-AGE
Controller mode:
Manual Reset
- 1. Press and hold both ⬇️ and ⬆️ buttons simultaneously and NON-releasing for at least 8 seconds.
Until the desktop descends to the lowest position and stops after a rebound.
2. Release both buttons to finish the initialization setup.
Error code and troubleshooting:
*If solution 1 is not implemented, then solution 2 is implemented, and if solution 2 is still not implemented, then solution 3 is implemented.

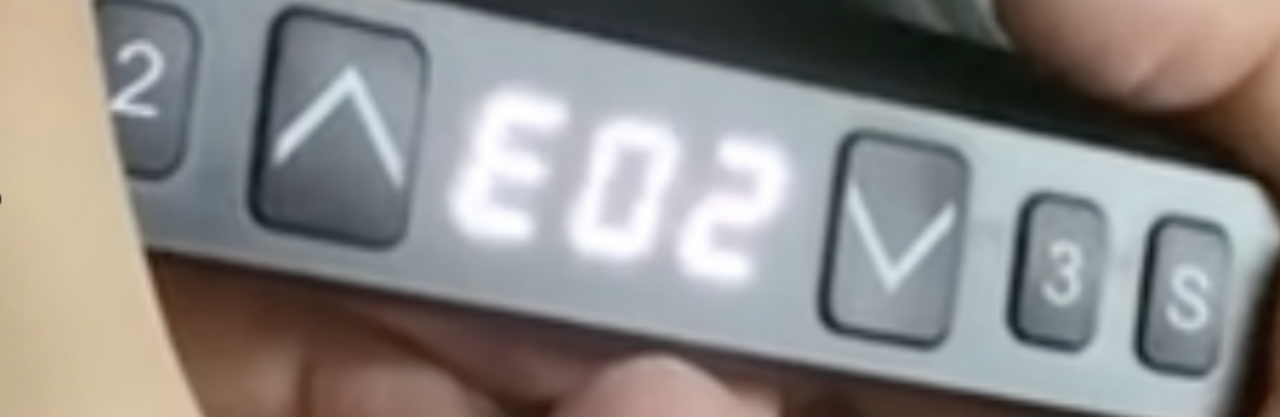

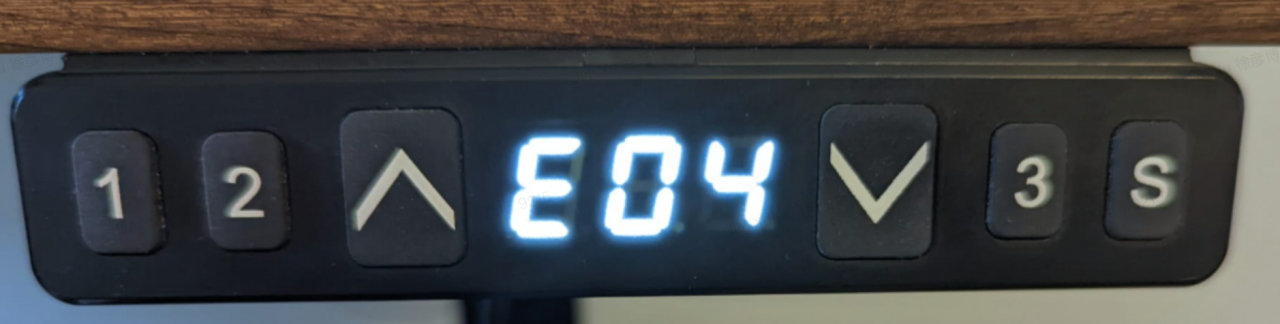

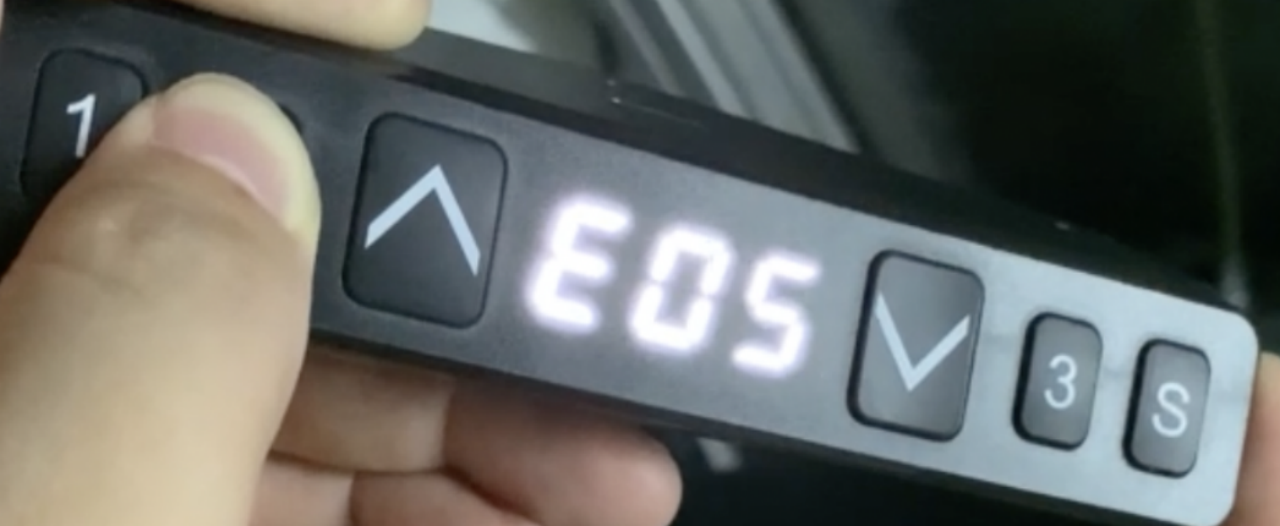

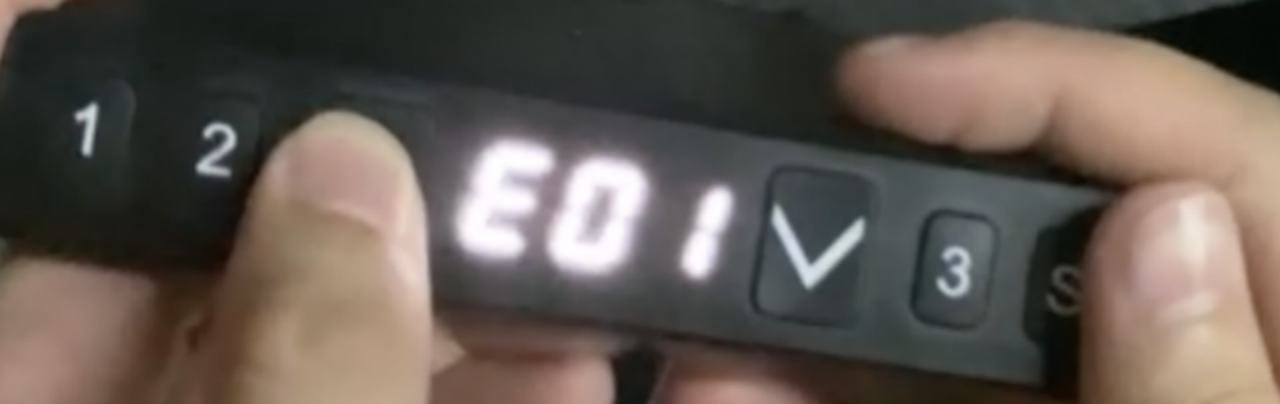

Error code | E01 | E04 | E12 | E02 | E05 |
Display error | | |
| | |
Gorgias Reply Template | 升降故障】AGE 乱码-重置-Error Codes-Reset E01/E04/E05 | 【升降故障】AGE 乱码-重置-Error Codes-Reset E01/E04/E05 |
|
| 升降故障】AGE 乱码-重置-Error Codes-Reset E01/E04/E05 |
Code Meaning | Abnormal motor signal | The controller cannot find the original starting point, indicating that a mechanical reset is required | The non-horizontal status signal from the gyroscope | Out-of-hours work | The hand control detects that the key value remains unchanged for 30 seconds |
Solution1 | 1. Re-plug the table leg from the hand control 2.Manual reset | 1. Remove the obstacle under the table 2. Mechanical reset (Reset) | 1. Place the control box flat on the table or fix it to the tabletop 2. Mechanical reset | Stop the operation and wait for the normal digital display before operating | 1. Release the button 2. Mechanical reset (Reset) |
Solution2 | Cross-validation | Replacement control box | Replacement control box |
| Replacement hand controls |
Solution3 | Confirmation of replacement table legs or control boxes based on cross-validation results | - | - | - | - |
