Product OverviewUpdated 3 years ago

• Structure

Classification

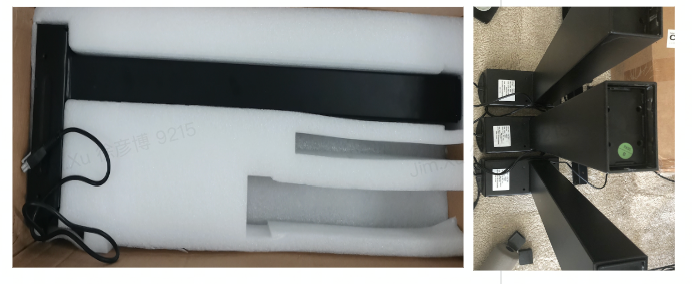

Model	Motor Q’ty	Pictures	Characteristics
Electric standing desk	1		1. One lifting column with external motor. 2. The sync rod is needed.
Dual motor standing desk	2		1. Two motor columns are the same. 2. The motor is built in and covered by a shell.
Triple motor standing desk	3		1. Two motor columns are the same. 2. The motor is built in and covered by a shell. 3. Controller= control box + keypad with screen
Hand Crank standing desk	0		1. No electric control device. 2. The sync rod is needed.

• Working Principle

Electric standing desk

1. The major parts are connected by wires (including extension cord).

2. The blue line shows the flow of electricity.

3. Control box or controller only controls the column with motor.

4. The other column is controlled by the motor column with the sync rod.

5. Issue troubleshooting please refer to troubleshooting problems (non-working, no display, abnormal motor, abnormal lift, error reporting, etc.).

Dual motor standing desk

1. The major parts are connected by wires (including extension cord).

2. The blue line shows the flow of electricity.

3. Control box or controller could control the 2 lifting columns up and down at the same time.

4. Even one of the devices, wire, or connectors is abnormal, which will cause a function issue.

5. Issue troubleshooting please refer to troubleshooting problems (non-working, no display, abnormal motor, abnormal lift, error reporting, etc.).
